Belt Grinders - Arms Group D

Heavy Duty Beltit Arm Attachments

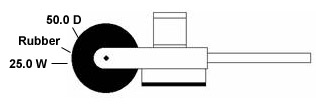

Arm operating 25mm wide belt

Heavy duty angle arm for grain rectification on stainless, ripple free dressing and blend butt welds.

Arm 50102 operates 25mm wide x 610mm long belts
Arm 50103 operates 25mm wide x 760mm long belts

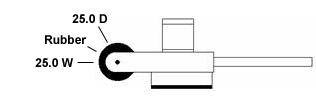

Arm operating 25mm wide belt

Soft polishing arm for use with abrasives, nylon finishing felt belts for mirror finishing; also good for blending large internal radii.

Arm 50202 operates 25mm wide x 610mm long belts
Arm 50203 operates 25mm wide x 760mm long belts

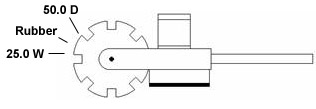

Arm operating 25mm wide belt

Use for stock removal. Start/stop marks minimised as serrations are closer together than the 50402 arm.

Arm 50302 operates 25mm wide x 610mm long belts
Arm 50303 operates 25mm wide x 760mm long belts

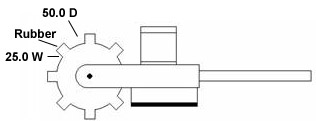

Arm operating 25mm wide belt

Use for rapid stock removal, ideal for butt weld dressing, chamfering, weld preparation and excellent for de-scaling. If necessary stop/start marls to be blended in after use with 50502VA (category c arm).

Arm 50402 operates 25mm wide x 610mm long belts
Arm 50403 operates 25mm wide x 760mm long belts
