BF Beltit Beltafile and Mini Beltafile

BF BELTIT BELTAFILE - Pneumatic and Electric With Choice of 5 Interchangeable Arms

Seco Beltafiles are exceedingly reliable and designed for tough industrial use. They have 5 interchangeable arms operating 3, 4, 6, 12/13 or 19mm belts. There is a choice of 457, 533 or 610mm length abrasive, surface finishing or polishing belts. Spare parts and full repair service is avalable. Tools, spares and consumable belts are available Ex-Stock.

PNEUMATIC

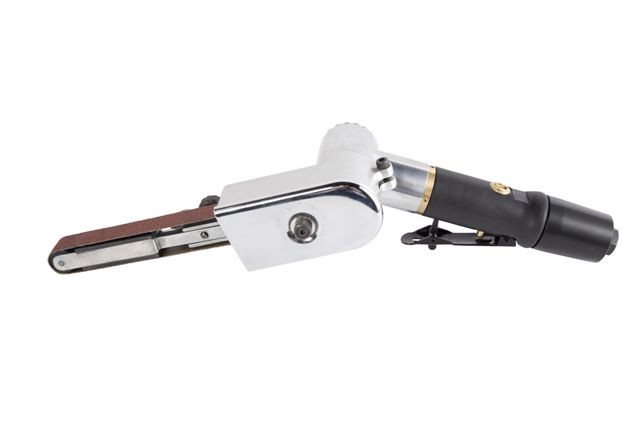

Pneumatic Beltit Beltafile (BFP10/C)

The BF is a high performance, industrial belt grinder.

The BF has a strong motor which is slightly smaller and lighter than the SH - our classic pneuamtic beltit.

The BF has a limited range of 5 types of arms but all available to operate 457, 533 and 610mm belts.

CLICK HERE FOR BFP10/C MANUAL

CLICK HERE FOR BFP10/C DRAWING

Please see below for performance figures, weights and dimensions for all Beltafiles

ELECTRIC

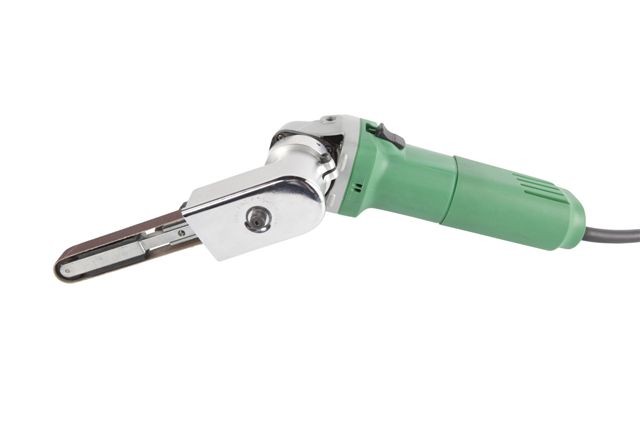

240 Volt Electric Beltit Beltafile (BFG24/C)
110 Volt Electric Beltit Beltafile (BFG11/C)
Features a 570 watt motor and exceedingly high torque ratio.

CLICK HERE FOR BFG24/C AND BFG11/C MANUAL

CLICK HERE FOR BFG24/C AND BFG11/C DRAWING

***************************************************

CLICK HERE FOR PNEUMATIC AND ELECTRIC BELTAFILE ARMS - 457, 533 and 610MM

CLICK HERE FOR ALL BELTAFILES PERFORMANCE FIGURES

CLICK HERE FOR ALL BELTAFILE DATA, WEIGHT AND DIMENSIONS

**************************************************

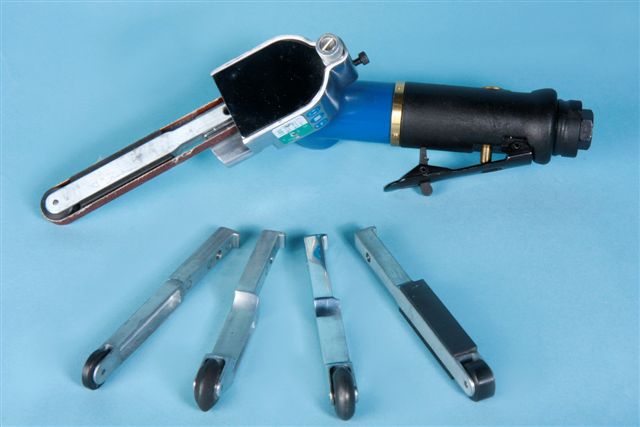

MINI BELTIT BELTAFILE - Pneumatic With Choice of 4 Interchangeable Arms

With Choice of 4 Interchangeable Arms

BFM/C: Pneumatic MIni Beltit 0.3hp, supplied without arm
BFM/12: Pneumatic Mini Beltit 0.3hp, with arm BFM12
BFM/K3: Pneumatic Mini Beltit 0.3hp, Kit with Arms (BFM06S,06,12)

Arms to operate 330mm Length Belts

BFM03: 3 x 330mm hooked arm
BFM06: 6 x 330mm hooked arm
BFM12: 12 x 330mm straight arm
BFM06S: 4/6 x 330mm straight arm (for slots and narrow channels)

The pneumatic Mini Beltit is a super light and compact belt grinder designed for light grinding, sanding, finishing and deburring jobs. It weighs only 0.75 kgs but make no mistake - in spite of its compact size and low weight, the Mini Beltit is an industrial tool!
It uses four interchangeable Contact Arms taking 330mm length belts. Three width options available: 3mm, 4mm, 6mm and 12mm.

Technical specification:

  • Powerful 0.3 hp pneumatic motor
  • Max. RPM: 17,600
  • Weight: only 0.75k kgs!!
  • Dimensions: 26.7 x 7.7 x 4.5 cms
  • Vibration level: less than 2.5m/s sq.
  • Air consumption: 22 CFM / 622 litres per minute.
  • Belt surface speed – metres per second 18.4
  • Sound level – 76.1 at 90 psi

CLICK HERE FOR MINI BELTAFILE MANUAL

CLICK HERE FOR MINI BELTAFILE PARTS DRAWING

CLICK HERE FOR MINI BELTAFILE ARMS

CLICK HERE FOR MINI BELTAFILE - INSTRUCTIONS ON CHANGING ARMS/BELTS

CLICK HERE FOR MINI BELTAFILE PERFORMANCE FIGURES
