Belt Grinders - Arms Group C

Advanced Beltit Arm Attachments

Arm operating 6mm wide belt

Slim line arm used for working into tight slots, restricted areas and inside corners.

Arm 50001 operates 6mm wide x 533mm long belts
Arm 50002 operates 6mm wide x 610mm long belts

Arm operating 12mm wide belt

Slim line arm used for working into slots and general restricted areas.

Arm 50011 operates 12mm wide x 533mm long belts
Arm 50012 operates 12mm wide x 610mm long belts

Arm operating 12mm wide belt

Slim line arm for use on the pad or for working on the wheel to obtain a smoother finish than the 50011 & 50012 arms.

Arm 50021 operates 12mm wide x 533mm long belts
Arm 50022 operates 12mm wide x 610mm long belts

Arm operating 6mm wide belt

Use for channels and restricted areas.

Arm 50031 operates 6mm wide x 533mm long belts
Arm 50032 operates 6mm wide x 610mm long belts

Arm operating 12mm wide belt

Use for stock removal and to minimise wear on the wheel.

Arm 50041 operates 12mm wide x 533mm long belts
Arm 50042 operates 12mm wide x 610mm long belts

Arm operating 12mm wide belt

Standard 12mm arm – general purpose; Grind, deburr, splatter remove, polish and finish. For use on wheel or platen pads. Reverse arm to give choice of platen pads (cork for grinding, rubber for finishing).

Arm 50051 operates 12mm wide x 533mm long belts
Arm 50052 operates 12mm wide x 610mm long belts

Longer arms for areas of difficult access; perfect finishing and internal grinding of square and round tubes.

Arm 50053 operates 12mm wide x 760mm long belts
Arm 50054 operates 12mm wide x 865mm long belts

Arm operating 12mm wide belt

Boomerang, use for straight line graining and grain rectification. Angle arm for stop/start and ripple free dressing of light butt welds, machined faces and polished surfaces.

Arm 50051BO operates 12mm wide x 533mm long belts
Arm 50052BO operates 12mm wide x 610mm long belts

Arm operating 12mm wide belt

Use for heavier work than the 50051. Larger wheel for better support. Quicker removal. May be restricted in tight areas.

Arm 50061 operates 12mm wide x 533mm long belts
Arm 50062 operates 12mm wide x 610mm long belts

Arm operating 6mm wide belt

Dressing tight areas without damage to parent material and blending internal radii.

Arm 50071 operates 6mm wide x 533mm long belts
Arm 50072 operates 6mm wide x 610mm long belts

Longer arms for areas of difficult access; perfect finishing and internal grinding of square and round tubes.

Arm 50073 operates 6mm wide x 760mm long belts
Arm 50074 operates 6mm wide x 865mm long belts
Arm 50075 operates 6mm wide x 1120mm long belts

Arm operating 3mm wide belt
(also operates 6mm wide belts)

Grind & finish; Narrow small welds; internal radii; tight angles.
Driven wheel shaped to a V, gives excellent tracking to a 3mm
belt. Allows for very neat dressing of welds.

Arm 50071V operates 3mm wide x 533mm long belts – V wheel
Arm 50072V operates 3mm wide x 610mm long belts – V wheel

Arm operating 6mm and 12mm wide belt

Grind, shape & finish; welds; internal and multi radii pipes; 32mm dia. Wheel allows 12mm belts to wrap around to grind and polish outer diameter of pipes, avoiding flats.

Arm 50071U32H operates 6/12mm wide x 533mm long belts
Arm 50072U32H operates 6/12mm wide x 610mm long belts

Arm operating 6mm and 12mm wide belt

Use for blending internal radii and stock removal on the wheel. Outside radiusing with 12mm belt behind wheel on slack of belt to produce flat free finish.

Arm 50081 operates 6/12mm wide x 533mm long belts
Arm 50082 operates 6/12mm wide x 610mm long belts

Arm operating 19mm wide belts

Grind & finish; Stock removal; Working large areas; Reverse arm to give choice of platen pads (cork for grinding, rubber for finishing).

Arm 50091 operates 6/12mm wide x 533mm long belts,
Rubber wheel 25.0D, 15.0W
Arm 50092 operates 6/12mm wide x 610mm long belts,
Rubber wheel 25.0D, 15.0W

Arm 50091U19 operates 6/12mm wide x 533mm long belts,
Urethane wheel 19.0D, 15.0W
Arm 50092U19 operates 6/12mm wide x 610mm long belts,
Urethane wheel 19.0D, 15.0W

Arm operating 12mm wide belts

Small angle arm for ripple free dressing on the pad, ideal for bottom recess.

Arm 50601 operates 12mm wide x 533mm long belts
Arm 50602 operates 12mm wide x 610mm long belts

Arm operating 25mm wide belts

Angle arm with acute angle for fine finishing of such items as large sheets of metal.

Arm 50502VA operates 25mm wide x 610mm long belts

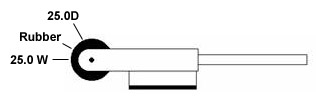

Arm operating 25mm wide belt

For light duty grinding work – on the return of the belt. Apply cork or foam platen pads to metal platen.

Arm 50102D operates 25mm wide x 610mm long belts
Arm 50103D operates 25mm wide x 760mm long belts

Arm can also be fitted with taper angle metal platen. -51035

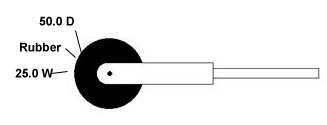

Pipe Polishing Arm operating 25mm wide belt

Grind / polish on the wheel to allow belt to wrap around tubes.

Arm 50202DD (50202POL) operates 25mm wide x 610mm long belts
Arm 50203DD (50203POL) operates 25mm wide x 760mm long belts

Polishing arms enable the abrasive, felt, finishing belt to "wrap around" a pipe/ tube. For very fine finishing work, ensure that the belt, when it runs over the wheel, does not touch the pipe/tube.
