Heavy Duty Beltit E240A-HD and E110A-HD - Perfomance Figures and Specialist Arms

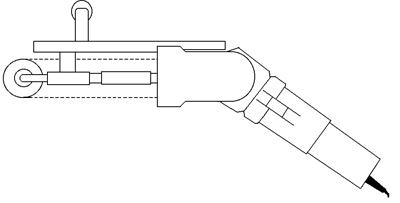

E240AHD & E240AHDVA
E110AHD & E110AHDVA

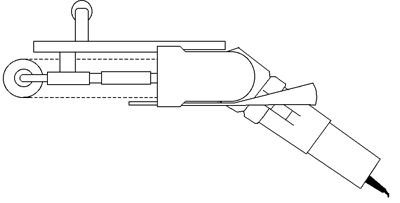

E240A-HD-VA & E110A-HD-VA (vacuum assisted dust collecting)

Suitable for heavy stock removal, and heavy work. Fitted with 1100 watt - 240V/110V motor, standard duty mechanism, support bar and U handle. (Support bar provides maximum protection to mechanism)

Select arms from largest choice, 3,6,12,19 mm wide belts + 25 mm wide belts (Group C arms).

Select this tool for heavy duty grinding.

Performance figures for the electric heavy duty beltit and its  dust collecting (VA) version

Beltit	RPM no load	Voltage	Power	Belt surface speed, (metres per second)	Sound levels 1.5 metres from Beltit	Hand-arm vibration level in ms2 r.m.s. frequency- weighted vibration in the worst axis
E240AHD	9,600	240 V AC	1,100 W	17.9	78 Leq dB(a)	Less than 2.5
E240AHDVA		50 Hz
E110AHD	9,600	110 V AC	1,100 W	17.9	78 Leq dB(a)	Less than 2.5
E110AHDVA		50 Hz

Note 1: All performance figures are average readings.

Note 2: Sound level readings were taken without abrasive belts as the wide range of abrasive grits and backings have varying effect on the readings.

Note 3: Vibration levels measured under working conditions grinding a block of steel, using an abrasive belt 25 x 610mm Aluminium Zirconia, P36 at 90PSI (6.12 bar).

Note 4: Sound and vibration levels certified by the Institute of Sound and Vibration Research at the University of Southamption in the UK.
